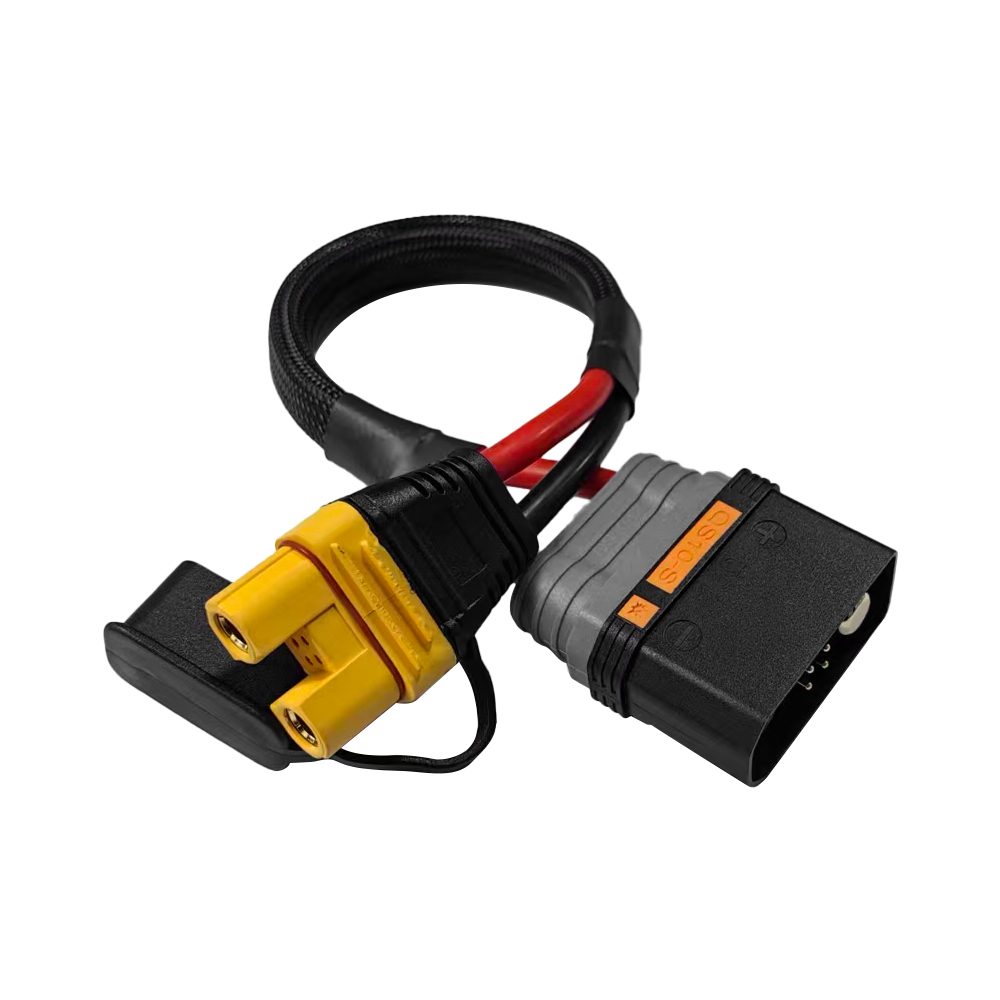

AS150U to QS10 Adapter Cable
Agricultural Grade | For Agricultural Drones / UAV Power Systems
Conductor: Tinned Stranded Pure Copper (Custom AWG)
Sheath: Braided Nylon + PA66 (Wear/Oil Resistant)
Temp: -20℃~+120℃
Current: 140A~180A Continuous
Voltage: 500V DC
Core: 2 Power Cores + 4 Signal Pins
Certifications: CE, RoHS, REACH
Customizable: Length / Wire Gauge / Pin Definition
AS150U to QS10 Adapter Cable SpecificationsAgricultural Grade Drone Battery/ESC Adapter Harness, Compliant with Drone Power Standards, Suitable for Agricultural Drones, Multirotor UAVs & High-Current Power Systems
1. Basic Specifications
Product Name: AS150U to QS10 Adapter Cable / Drone Battery Harness / ESC Balance Adapter Wire
Conductor Material: Tinned Stranded Pure Copper (Class 5/6 Flexible Stranding, Custom AWG Available)
Insulation Material: Silicone (High-Temp, Oil-Resistant, Anti-Abrasion)
Sheath Material: High-Density Braided Nylon + PA66 (Flame-Retardant, Anti-Tear, High-Temp Resistant)
Rated Voltage: 500V DC (Industrial Grade)
Working Temperature Range: -20℃ ~ +120℃ (Standard)
Wire Gauge (AWG/mm²): Custom (Matched to 140A~180A Current Load)
Core Count: 2 Power Cores + 4 Signal Pins (Fixed Configuration)
Nominal Outer Diameter: Custom (According to Wire Gauge & Length)
2. Key Performance Parameters
Current-Carrying Capacity: 140A~180A Continuous (Depends on Wire Gauge, Stable Power Transmission)
Insulation Resistance: ≥100MΩ (20℃), Excellent Insulation Performance, Safe for High-Voltage Drone Use
Environmental Resistance: Anti-Ozone, Anti-Humidity, Anti-Chemical (Acid/Alkali/Oil Resistant), Adapt to Harsh Agricultural Field Environments
Bending Resistance: High-Flexibility Design, Durable for Frequent Plugging/Unplugging and Vibration Scenarios
Flame Retardant Grade: UL94 V-0 (PA66 Shell), Meet Drone Power Safety Standards
Certifications: CE, RoHS, REACH (Compliant with EU/US Import Standards)
3. Structural Features
Stranded Copper Conductor: High-Purity Tinned Copper, Low Resistance, Stable Power Transmission
Double Insulation: Silicone Inner Insulation + Braided Nylon Outer Sheath, Strong Anti-Interference, Prevent Short Circuit
Connector Design: AS150U Male + QS10 Female Connectors, Secure Locking, Anti-Loose During High-Vibration Flight
Optional Customization: Custom Wire Gauge, Length, and Connector Pin Definition for Specific Drone Models
4. Application ScopeWidely Used for Agricultural Plant Protection Drones, Industrial Multirotor UAVs, High-Current Drone Batteries, ESCs, and Chargers,
Providing Stable Power and Signal Transmission for High-Load Drone Operations
5. Customization Options
Custom Wire Gauge & Length (Standard 350mm, Customizable)
Custom Connector Pin Definition (4 Signal Pins for Balance/Communication)
Custom Sheath Color & Labeling
High-Current Version Upgrade (Up to 200A, Based on Wire Gauge)
Custom Packaging (Anti-Static Bags, Custom Labels)
