Industrial Grade | For Power Tools/Home Appliances/Electronic Equipment
Connector: M12 Waterproof Connector (IP67 Rated)
Conductor: Tinned Plated Copper (0.2mm²)
Sheath: PVC (Wear-Resistant & Insulated)
Temp: -40℃~+120℃
Waterproof: IP67 Dust-Tight & Waterproof
Voltage: DC 0-24V
Length: 200mm (Customizable)
Certifications: RoHS, REACH
Customizable: Core Count/Length/Connector Pinout
M12 Waterproof Cable Harness Specifications
Industrial Grade M12 Waterproof Wiring Harness, Compliant with International Standards, Suitable for Power Tools, Home Appliances & Electronic Equipment
1. Basic Specifications

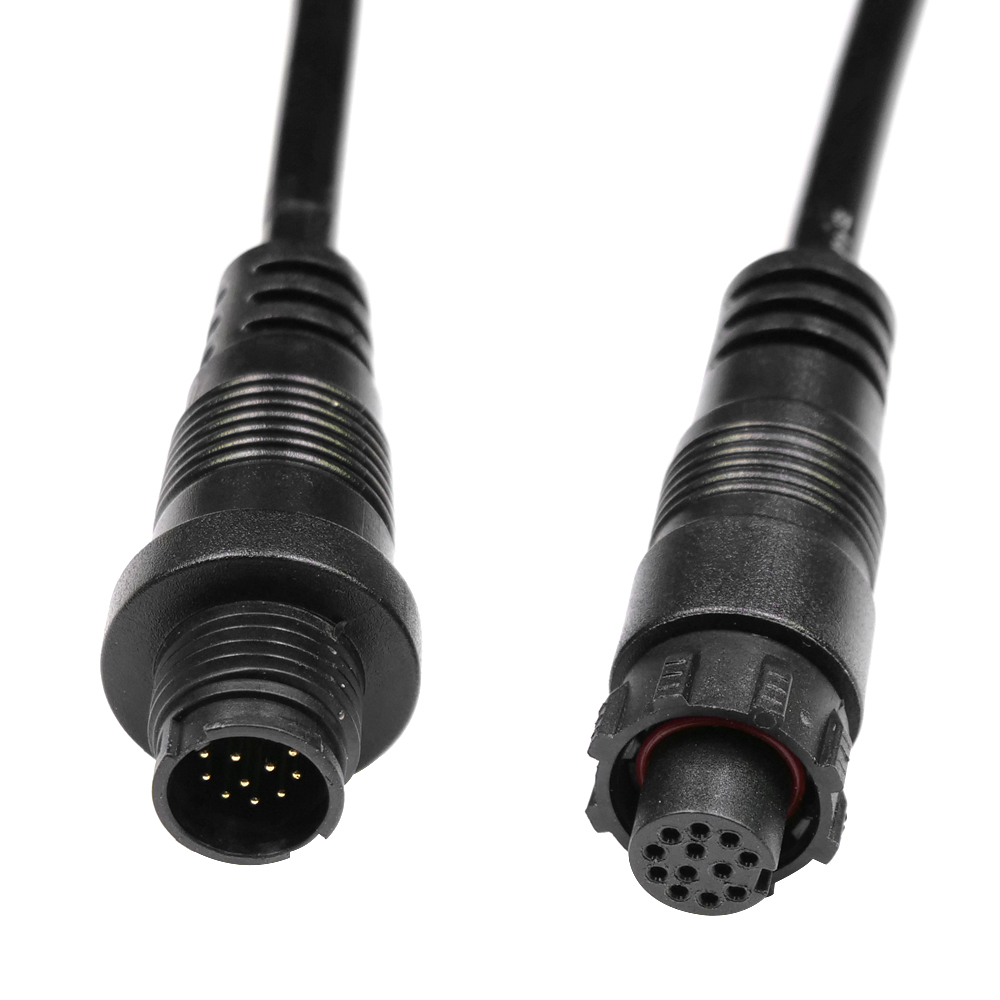

Product Name: M12 Waterproof Cable Harness / Open Wire End Wiring Harness
Connector Type: M12 Waterproof Connector
Conductor Material: Tinned Plated Copper (0.2mm², Class 5 Flexible Stranding)
Insulation & Sheath Material: PVC (Wear-Resistant & Insulated)
Waterproof Rating: IP67 (Dust-Tight & Waterproof)
Rated Voltage: DC 0-24V (Industrial Grade)
Working Temperature Range: -40℃ ~ +120℃
Wire Length: 200mm (Customizable)
Nominal Outer Diameter: Customizable (According to Core Count & Gauge)
2. Key Performance Parameters
Waterproof & Dustproof: IP67 Rated, Suitable for Damp, Dusty & Outdoor Environments
Wear Resistance: Durable PVC Sheath, Anti-Abrasion & Anti-Scratch for Long-Term Use
Environmental Resistance: Anti-Humidity, Anti-Corrosion, Adapt to Harsh Working Conditions
Current-Carrying Capacity: Stable Transmission for Low-Voltage Power Signals
Insulation Resistance: ≥100MΩ (20℃), Excellent Insulation Performance for Safe Use
Certifications: RoHS, REACH, Compliant with EU/US Import Standards
3. Structural Features
Stranded Copper Conductor: Tinned Plated Copper, Stable Conductivity & Corrosion Resistance
PVC Insulation & Sheath: Smooth Surface, Good Insulation & Wear Resistance
Open Wire End Design: Easy Splicing & Installation for Custom Wiring Needs
Compact M12 Connector: Secure Connection, Vibration-Resistant for Equipment Use
4. Application Scope
Widely Used for Power Tools, Electric Pressure Cookers, Water Heaters, Ovens, Air Conditioners, Lawn Lights, Waterproof Transformers, and Other Home Appliances & Electronic Equipment Requiring Waterproof & Stable Power Transmission.
5. Customization Options
Custom Wire Gauge, Core Count, Outer Diameter
Custom Sheath Material (PVC/PUR) for Different Environments
Custom Connector Pinout & Length (100mm~1000mm)
Custom Packaging & Labeling
