AWG Wire Range Selection: Matching 4#–8# Cables to Your High-Current Anti-Spark Connector [QS12H Anti-Spark Connector] – Avoid Overheating and Voltage Drop by Choosing the Correct Wire Gauge

Introduction: The Hidden Risk in Your High-Power System

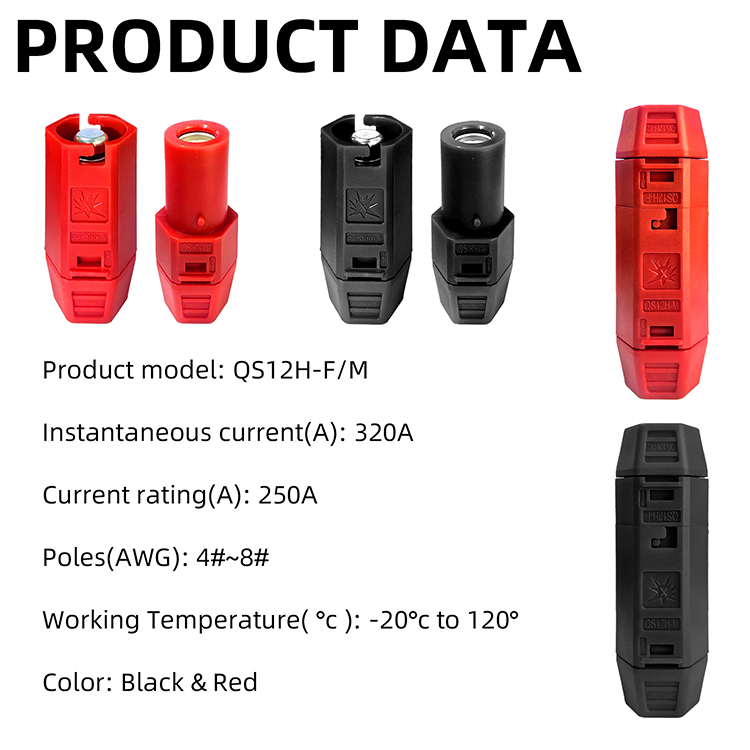

You have selected a robust high-current anti-spark connector rated at 250A continuous / 320A instantaneous. The connector looks perfect on paper – low contact resistance (0.51mΩ max), flame‑retardant PA66 housing, and a built‑in anti‑spark circuit. But when your battery pack, AGV, or charging pile goes into field operation, you notice overheating at the cable crimp, voltage drops under load, or even melted insulators.

Why? Most engineers overlook the most critical link between the connector and the rest of the system: the AWG wire size.

The QS12H anti-spark connector supports 4# to 8# AWG cables. But matching the wrong gauge to your actual current can destroy performance, create a fire hazard, and waste the advanced features of your anti‑spark design.

In this article, we explain how to choose the correct wire gauge for your QS12H connector, why it matters for anti‑spark performance, and how Youwei Technology helps you avoid costly mistakes.

1. The Problem: Why Undersized Wires Ruin Connector Performance

1.1 Heat Generation – The Silent Killer

Every conductor has resistance. When current flows through a wire that is too thin for the load, power dissipates as heat (Joule heating: P = I²R).

• A 8 AWG copper wire (7.5 mm²) has a resistance of ~2.06 mΩ/m. At 200A, power loss = 200² × 0.00206 = 82.4 watts per meter – enough to melt PVC insulation.

• A 4 AWG wire (21.1 mm²) has ~0.81 mΩ/m. At 200A, loss = 32.4 W/m – still hot but manageable with proper ventilation.


If you crimp an 8 AWG wire into a QS12H terminal designed for 250A, the heat generated inside the connector housing cannot escape. The result:

• Degraded PA66 housing (melting point ~260°C, but softens above 120°C)

• Increased contact resistance due to thermal expansion

• Premature failure of the anti‑spark resistor or spring mechanism


1.2 Voltage Drop – System Instability

Undersized cables also cause unacceptable voltage drops. For a 48V battery system, a 2V drop at 200A means 4% power loss and under‑voltage shutdowns on your BMS. For a 400V EV battery, even 5V drop can trigger fault codes.

1.3 The Anti‑Spark Connection Is Not a Cure‑All

The QS12H’s anti‑spark design effectively eliminates plug‑in arcing by pre‑charging the capacitive load. However, if your wire gauge is wrong, heat and voltage drop still occur after the connection is made. The connector cannot compensate for cable losses.

2. Principle Analysis: How Current Rating, Wire Gauge, and Connector Interact

2.1 Connector Rating vs. Wire Rating – They Must Match

Key takeaway: The QS12H itself can handle 250A, but the wire you attach determines the system’s real limit. Using 8 AWG with 200A will overheat the wire long before the connector reaches its limit.

2.2 Why QS12H Accepts 4#–8# AWG

The QS12H terminal is designed with a wide crimp range to give you flexibility:

• 8 AWG – for short interconnects under 120A (e.g., internal BMS wiring)

• 6 AWG – for 120–160A (small AGVs, light EVs)

• 4 AWG – for 160–200A (larger forklifts, energy storage modules)


For 250A continuous, you need 2 AWG or even 1/0 AWG. If your application requires such high current, contact our tech team for a custom terminal that accepts larger wires while keeping the same QS12H housing.

3. Solution: How to Correctly Match AWG Wires to QS12H for Safety and Efficiency

3.1 Step-by-Step Selection Guide

Step 1: Determine your RMS continuous current (not peak).
Example: A 300Ah lithium battery pack being discharged at 0.8C = 240A continuous.

Step 2: Refer to the NEC ampacity chart for copper wire (90°C insulation).

Step 3: For 250A continuous, use 1/0 AWG with a custom terminal or parallel 4 AWG (two wires per pole).

Step 4: Verify crimp quality. Poor crimping doubles contact resistance. Use a milliohm meter – total loop resistance (connector + wire + crimp) should stay below 1.5mΩ.

3.2 How QS12H’s Design Supports Correct Wiring

• Nickel‑plated copper conductor – prevents galvanic corrosion when crimped to copper wire.

• Low contact resistance (0.51mΩ max) – ensures that the connector adds almost no heat to the system if the wire is properly matched.

• Anti‑spark pre‑charge circuit – eliminates the initial surge that could otherwise weld undersized wires at first connection.

• UL94‑V0 housing – safe even if a mismatched wire causes minor overheating (but do not rely on this as a design margin).


3.3 Real-World Data: Test Comparison (200A continuous, 30 min)

Test conditions: QS12H connector, ambient 25°C, natural convection.

4. Customization Options for Non‑Standard Wire Sizes

Not every application fits the 4–8 AWG range. Youwei Technology offers custom terminal tooling to adapt the QS12H anti‑spark connector for:

• 2 AWG to 4/0 AWG cables

• Aluminum lugs (with bi‑metallic plating)

• High‑strand ultra‑flexible wires for robotic AGV arms


You keep the same anti‑spark mechanism, foolproof mating, and compact footprint – only the terminal is modified to match your exact cable. Minimum order quantity for customization is low; we support prototyping.

5. Conclusion: Don’t Let the Wrong Wire Ruin a Great Connector

The QS12H high-current anti-spark connector is a technically advanced product that solves arcing, reduces contact resistance, and ensures safe operation in demanding environments. But its performance is only as good as the wire you attach to it.

• Always derate: Never push 250A through an 8 AWG wire.

• Match continuous current to NEC ampacity (use 1/0 AWG for 250A).

• Use proper crimping tools and verify contact resistance.

• Need a larger wire size? Ask us about custom terminal options.


By choosing the correct AWG, you will achieve:
✔ Lower temperature rise → longer connector life
✔ Higher system efficiency → less energy wasted as heat
✔ Reliable anti‑spark operation → no contact welding
✔ Compliance with safety standards → peace of mind

If you have any request please contact with my tech team
