Waterproof Grade Customization for Marine Energy Equipment Application Connectors

1. 1. Marine Equipment Waterproof Failure Consequences

2. Electric vessels, offshore floating energy storage stations face splashing seawater, rain immersion and condensed water all year round. Non-custom low-waterproof connectors have frequent faults: Seawater penetrates into connector cavity, salt ion corrosion increases contact resistance sharply; Water film between male and female terminals generates electrolytic spark during power supply, ablating terminals continuously; Sealing ring aging under long-term seawater immersion causes short-circuit risk, threatening marine navigation safety. European marine equipment manufacturers feedback that standard IP54 connectors fail within 6 months on inland and offshore vessels.

3. 2. Limitations of General Standard Waterproof Connectors

4. Ordinary connectors only adopt single-layer thin silicone sealing ring, maximum IP54 protection, cannot resist long-term seawater splash and temporary shallow immersion; sealing material is ordinary silicone without anti-salt additive, easy to harden and lose elasticity after contacting seawater salt fog. No drainage structure for accumulated seawater inside the cavity.

5. 3. Multi-Grade Waterproof Customization Scheme of QS Antispark for Marine Energy Equipment

6. YOUWEI provides three customizable waterproof grades for marine energy equipment QS Antispark connector: IP65 Basic Marine Customization: Double-layer ordinary silicone sealing ring, suitable for inland river electric ships with occasional rain splash, prevents fresh water invasion; IP67 Standard Offshore Customization: Salt-resistant modified silicone sealing ring, fully enclosed mating cavity, resists continuous seawater splash and short-time 1m depth immersion, most selected by coastal energy storage clients; IP68 Deep Water Customization: Thickened fluorine rubber sealing ring + secondary locking waterproof cap, supports continuous 5m underwater operation for underwater power supply modules of marine equipment.


All waterproof customized QS connectors retain built-in pre-charge anti-spark structure, eliminating electrolytic arc caused by water film between terminals. Custom bottom drainage grooves can be added for marine projects to drain accumulated seawater automatically.

4. 4. Waterproof Grade Accelerated Immersion Test Results

5. Test condition: 720h continuous seawater splash + immersion cycling test


• Sealing ring elasticity retention rate Standard IP54 Single-Seal Connector: 27% Custom IP67 Salt-Resistant QS Antispark Connector: 86%
• Internal seawater penetration volume Standard IP54 Single-Seal Connector: Heavy accumulated water Custom IP67 Salt-Resistant QS Antispark Connector: Zero water entry
• Electrolytic corrosion area of terminals Standard IP54 Single-Seal Connector: 69% Custom IP67 Salt-Resistant QS Antispark Connector: Less than 0.5%
• Micro-arc generation during power standby Standard IP54 Single-Seal Connector: Daily continuous spark Custom IP67 Salt-Resistant QS Antispark Connector: Zero electrolytic spark

5. 5. Marine Energy Equipment Matching Scenarios

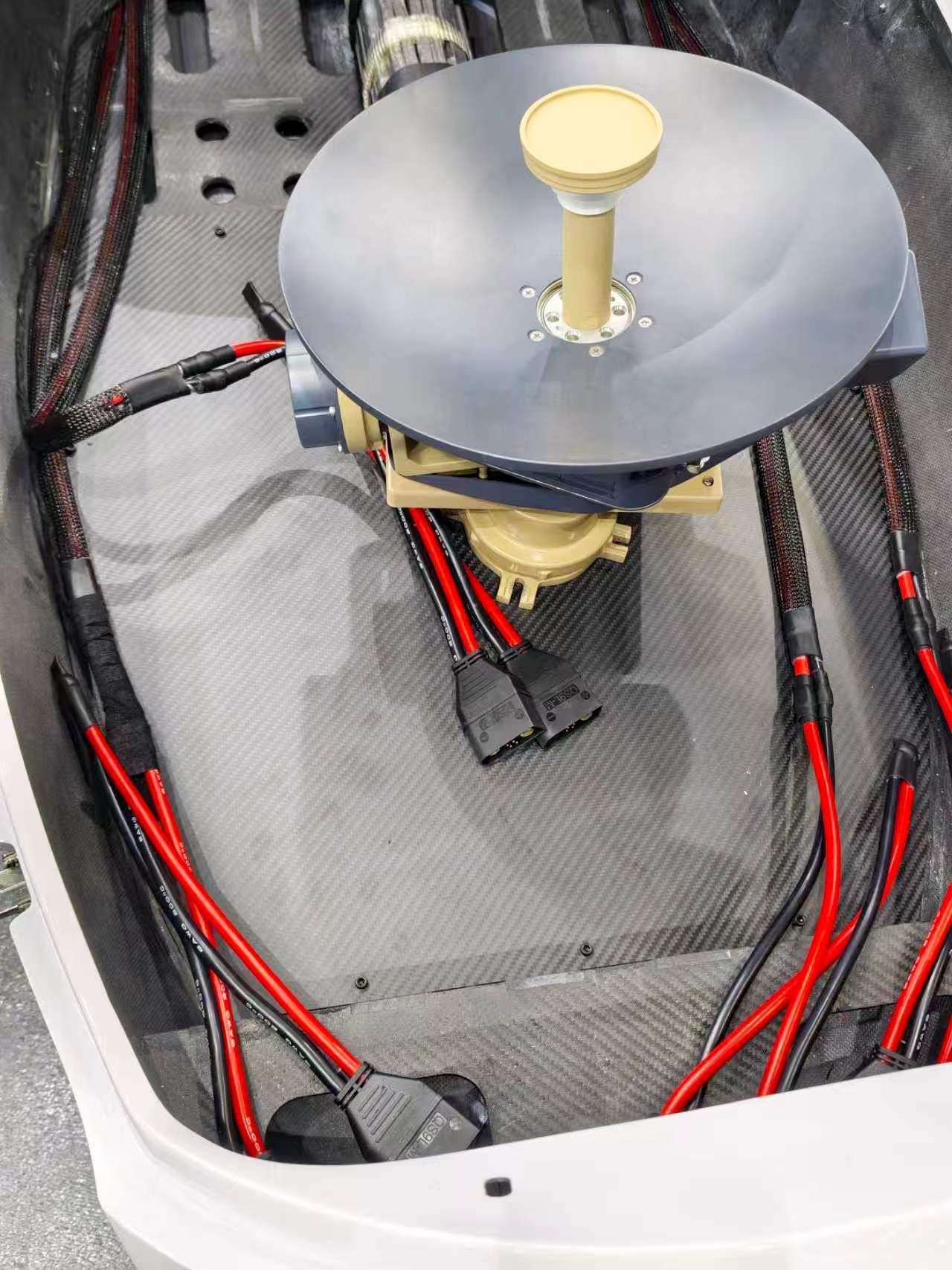

6. Inland cargo electric ships, offshore floating solar energy storage stations, yacht auxiliary battery power systems, underwater detection equipment power interfaces, coastal dock charging piles.

7. 6. Conclusion & Inquiry Guide

8. Different marine working environments demand targeted waterproof grade customization of high-current connectors. Multi-level salt-resistant waterproof QS Antispark connector blocks seawater invasion and eliminates water-film induced electrolytic arc, solving core failure pain points of marine energy equipment power connection. Tell us your vessel navigation environment (inshore/offshore/underwater) for matched waterproof customization solution.
