Shock Resistance Customization for Construction Machinery Power Connection Components

1. Shock Impact Failure of Construction Machinery Connectors

Excavators, loaders, road rollers and other construction machinery work under frequent bumping, impact and strong vibration. Ordinary connectors suffer impact damage easily: Instant shock impact separates male-female terminals to form contact gap, generating strong electric arc that burns terminals instantly; Plastic housing brittle crack under violent mechanical shock, exposing internal live terminals to short-circuit risk; Crimped wire terminals loose after repeated impact, power supply intermittent failure stops construction equipment operation suddenly.

2. Shock Resistance Defects of General Construction Machinery Connectors

Low toughness ordinary PBT plastic shell, brittle crack under instantaneous strong impact; Single thin plastic locking buckle cannot resist shock separation force; No buffer structure inside connector, shock force directly acts on terminal contact surface to widen mating gap.

3. Shock Resistance Custom Upgrade of QS Antispark Connector for Construction Machinery

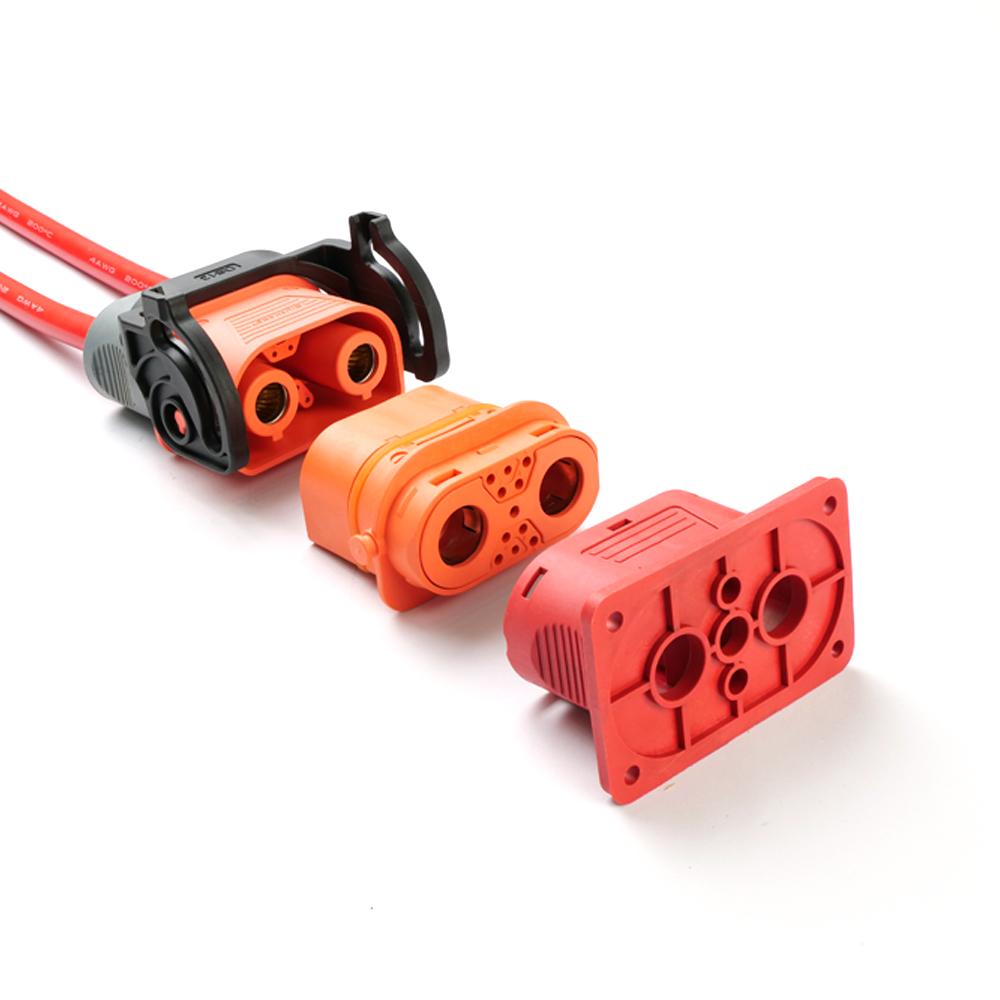

YOUWEI customizes three shock-resistant structures for construction machinery QS Antispark connector: High-toughness modified PA66 housing customization: Add glass fiber and anti-brittle agent to plastic raw material, impact resistance increased by 3 times vs standard PBT shell, no crack under 50G instantaneous shock test; Double metal anti-shock locking buckle customization: Stainless steel thick buckle bears impact separation force, prevents male-female separation under bump vibration; Built-in silicone shock buffer gasket customization: Soft buffer layer between terminal and housing absorbs instantaneous shock force, avoiding contact gap expansion. The built-in pre-charge anti-spark module eliminates impact gap electric arc fundamentally.

4. Mechanical Shock Benchmark Test Data

Test condition: 50G instantaneous impact cyclic test, total 5000 cycles

1. Housing crack occurrence

• Standard PBT Single-Lock Connector: Crack appears after 820 impact cycles
• Shock-Resistant Custom PA66 QS Antispark Connector: No damage after completing all 5000 test cycles

2. Terminal mating gap after shock test

• Standard PBT Single-Lock Connector: Visible gap of 0.42mm
• Shock-Resistant Custom PA66 QS Antispark Connector: Gap less than 0.03mm

3. Arc generated during impact separation

• Standard PBT Single-Lock Connector: Produces high-temperature ablation arc
• Shock-Resistant Custom PA66 QS Antispark Connector: Zero spark occurs

4. Wire crimp pull-off force retention rate

• Standard PBT Single-Lock Connector: 41%
• Shock-Resistant Custom PA66 QS Antispark Connector: 93%

5. Construction Machinery Application Scope

Electric excavator battery packs, new energy loader main power connectors, road roller energy storage power interfaces, mining electric engineering vehicles.

6. Conclusion & Inquiry Guide

Frequent mechanical shock is the main cause of construction machinery connector arc failure and shell damage. Custom high-toughness housing, double metal lock and buffer structure QS Antispark connector resists impact separation and eliminates shock-induced electric arc. Provide your construction machinery maximum impact acceleration parameter for targeted shock resistance customization.If you have any request please contact with my tech team http://www.youweic.com
